Preset API

Presets provide a stable, compact API for bundled weather and ambience combinations.

Manage API-created effects

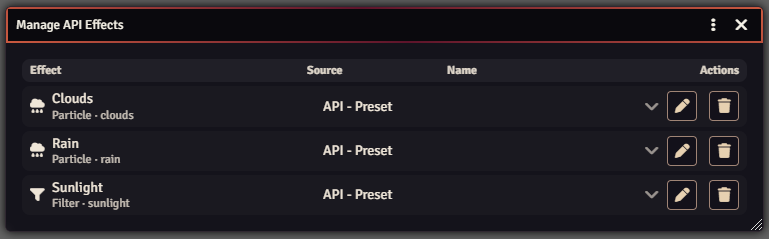

Effects created through FXMASTER.api.presets appear in Manage API Effects. The Source column identifies these rows as API - Preset, while Name identifies the preset that created them.

Use Manage API Effects to inspect, edit, or delete active preset-created rows. These rows remain separate from Scene effects configured through Particle Effects or Filter Effects.

Method reference

Method	Result
play(name, options)	Applies or updates one named preset; returns true or false
stop(name, options)	Removes rows created for that preset; returns true or false
toggle(name, options)	Stops an active preset or plays an inactive one; returns the new enabled state
switch(name, options)	Stops all active preset-API rows, then applies the requested preset
list()	Returns all known preset names
listValid(options)	Returns presets with a compatible variant in the current world
listActive(options)	Returns preset names represented by active preset-API rows
hasFxmaster()	Returns whether FXMaster is active
hasFxmasterPlus()	Returns whether FXMaster+ is active

Names

Names are trimmed, lowercased, and normalized with hyphens. These resolve to the same preset:

await FXMASTER.api.presets.play("Acid Rain");
await FXMASTER.api.presets.play("acid-rain");

Open the Preset Catalog for the complete shipped list.

Variant resolution

topDown: true requests the top-down variant when one exists.

await FXMASTER.api.presets.play("blizzard", {
  topDown: true
});

A preset operation returns false when no compatible definition can be resolved for the selected tier, variant, and registered effect database.

Supported overrides

Option	Accepted value	Behavior
topDown	Boolean	Requests a top-down preset variant
direction	Compass alias or degrees	Overrides compatible effect direction
color	Hex color	Applies a compatible tint override
speed	Relative name or number	Multiplies supported speed controls
density	Relative name or number	Multiplies supported density controls
belowTokens	Boolean	Moves supported rows below tokens
splash	Boolean	Enables or disables Rain splashes
background	Boolean	Enables supported particle background surfaces
tokenTrails	Boolean	Enables supported token trail interactions
belowTiles	Boolean	Moves supported rows beneath overhead tiles
belowForeground	Boolean	Moves supported rows beneath foreground coverage
darknessActivationEnabled	Boolean	Explicitly enables or disables darkness gating
darknessActivationMin	Number from 0 to 1	Sets the minimum active darkness
darknessActivationMax	Number from 0 to 1	Sets the maximum active darkness
soundFx	Boolean	Enables supported FXMaster+ SoundFX matching
windPainting	Boolean	Enables painted Wind masks for compatible Wind filters
levels	Level id/name or array	Limits rows to selected scene Levels
scene	Scene document or UUID	Targets another scene
silent	Boolean	Controls missing-preset and invalid-override warnings
skipFading	Boolean	Bypasses transition fades

Direction convention

FXMaster uses geometric degrees:

Direction	Degrees
East / right	0
North / up	90
West / left	180
South / down	270

Diagonal names and abbreviations such as ne, southwest, and nw are also accepted.

Relative speed and density

Name	Multiplier
very-low	0.0
low	0.5
medium	1.0
high	1.5
very-high	2.0

Values are clamped and quantized against each effect’s public parameter definition.

Scene targeting

Omit scene to target canvas.scene. Supply a Scene document or UUID to target another scene.

await FXMASTER.api.presets.play("fog", {
  scene: "Scene.abc123"
});

List compatible presets

const standard = FXMASTER.api.presets.listValid({
  topDown: false
});

const topDown = FXMASTER.api.presets.listValid({
  topDown: true
});

const eitherVariant = FXMASTER.api.presets.listValid();

Use listValid() when a macro depends on FXMaster+ effects or a specific projection.

Switch or clear preset weather

switch() stops every preset created through the preset API on the target scene before applying the new name.

await FXMASTER.api.presets.switch("drizzle", {
  density: "low",
  speed: "low"
});

A falsy name clears active preset-API rows without applying another preset:

await FXMASTER.api.presets.switch(null, {
  skipFading: true
});
