Sound Effects Manager

Select Manage Sound Effects from FXMaster Controls to open the Sound Effects Manager. SoundFX rules link active particle or filter effects to audio and can represent broad environmental ambience or sounds produced by tokens moving through an active effect area.

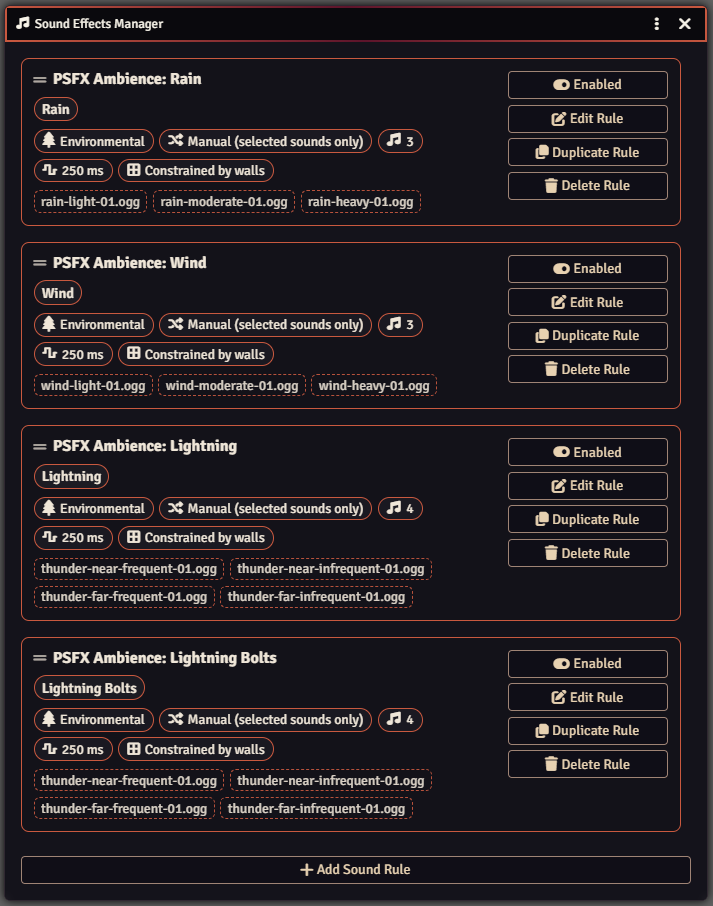

Sound Effects Manager window

The window lists saved rules, their matching effects, selected playback mode, delay and wall badges when applicable, and the sounds assigned to each rule.

Import and Export Rules

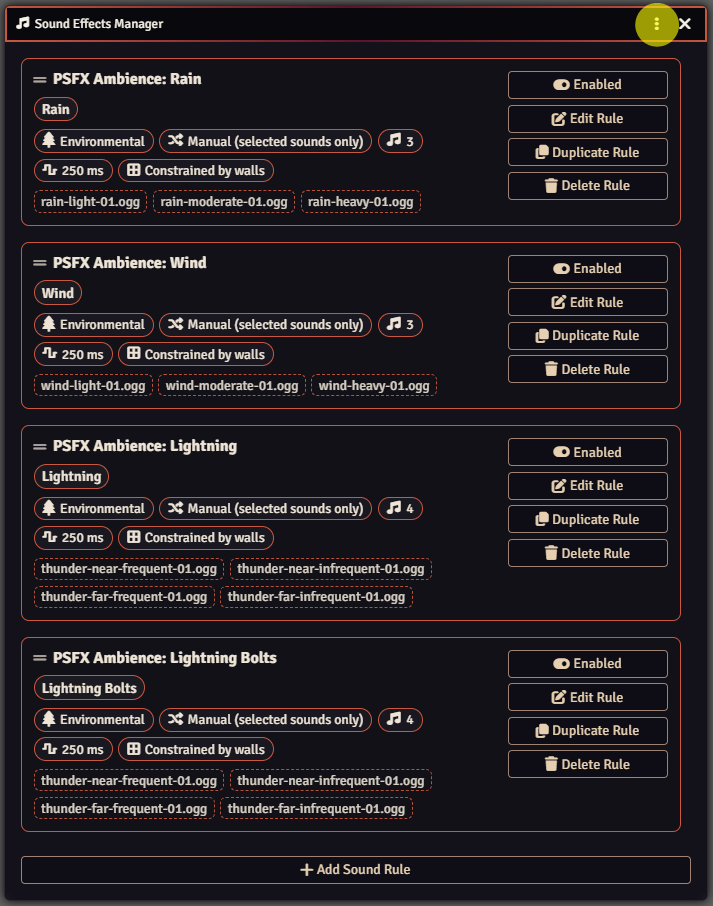

Use the overflow menu in Sound Effects Manager to open Import Rules or Export Rules. These options are useful for backing up a rule set, moving rules between worlds, or sharing a known working configuration.

• Export Rules creates a portable copy of the current rules.
• Import Rules loads previously exported rules into the current world.

After importing, review the imported rules, their enabled state, and any referenced sound files before relying on them in play.

Rule types

The Rule Type field provides two options.

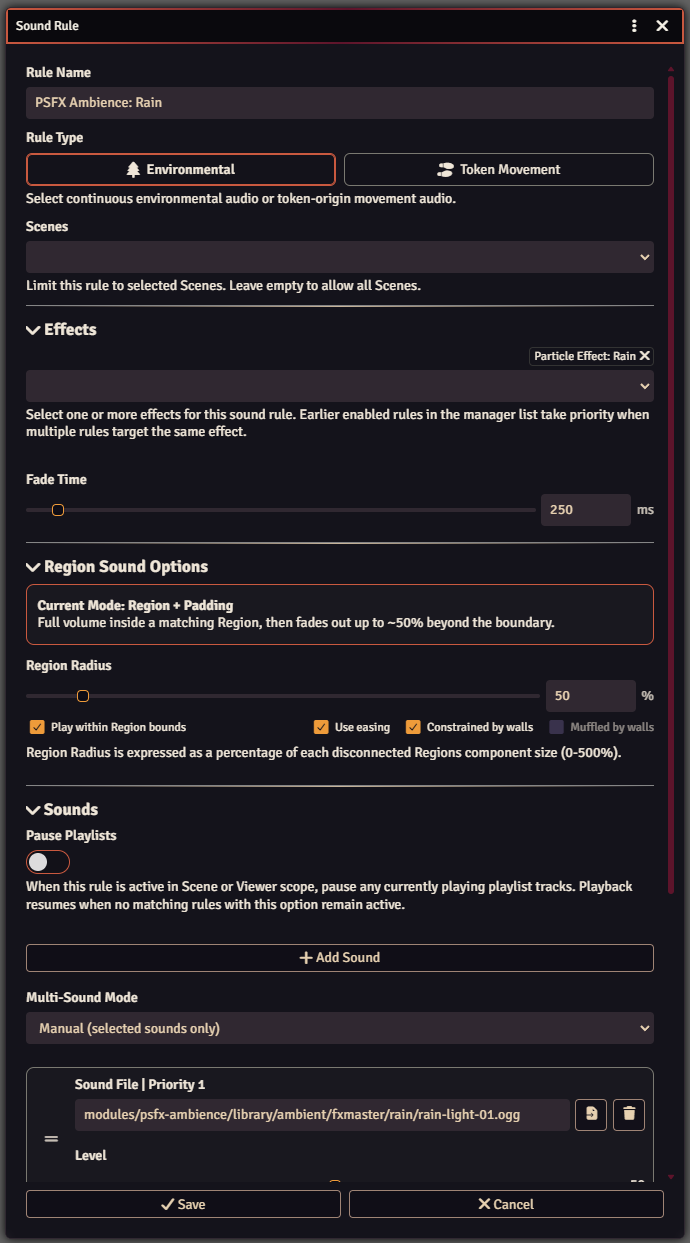

Environmental

Environmental rules play while matching effects are active. They can be Scene-wide, limited to matching Region bounds, or extended outward from a Region through Region Radius.

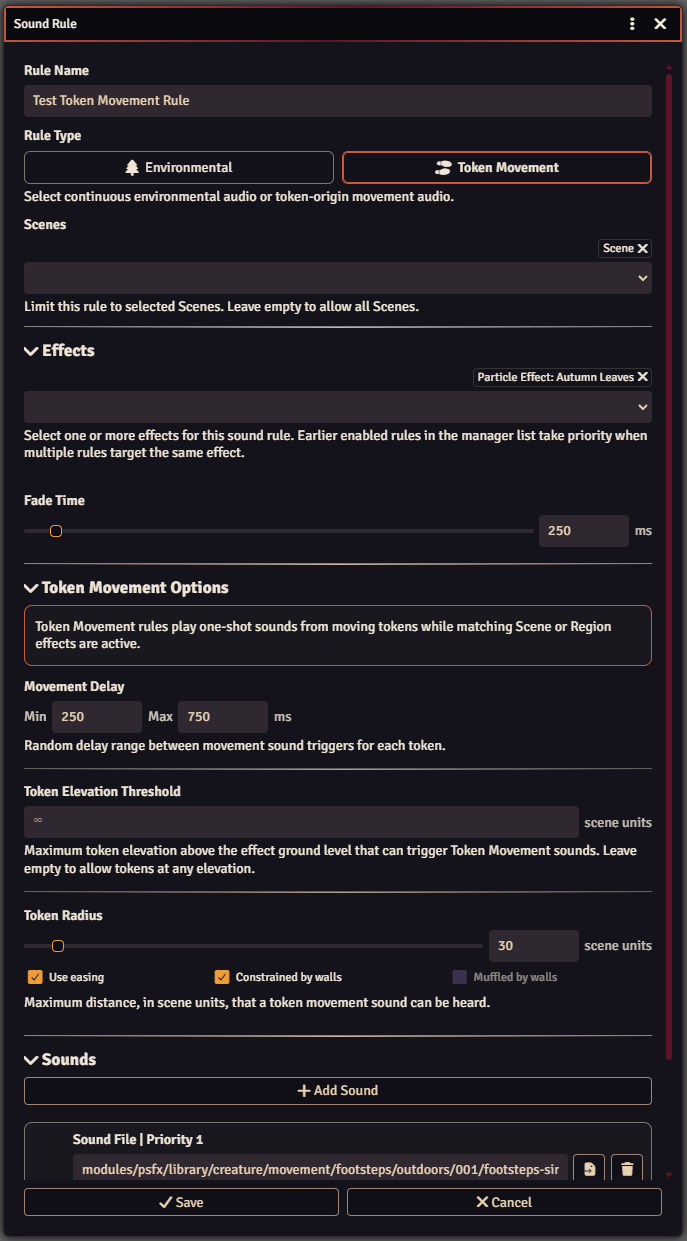

Token Movement

Token Movement rules trigger from eligible token movement through matching effects. They add Movement Delay, Token Elevation Threshold, Token Radius, easing, wall handling, and muffling options.

Build a rule

1. Select Manage Sound Effects from FXMaster Controls.
2. Select Add Sound Rule.
3. Enter a Rule Name.
4. Use Rule Type to choose Environmental or Token Movement.
5. Use Scenes when the rule should be limited to specific Scenes.
6. Select the Effects dropdown and choose one or more particle and filter effects.
7. Configure Fade Time and any applicable Region Sound Options or Token Movement Options.
8. Open Sounds, select Add Sound, choose a Sound File, and set its Level.
9. Choose a Multi-Sound Mode when the rule contains more than one sound.
10. Select Save, then confirm the rule is Enabled in the Sound Effects Manager.

A rule can apply to both Scene and Region effect rows. The Sound FX toggle must be enabled on each effect row that should activate the rule. Region effects are configured through FXMaster: Particle Effects or FXMaster: Filter Effects on the Region; playback then follows the location of the enabled matching effect.

When the Effects dropdown contains more than one effect, every selected effect must be active for the rule to match. The selections are AND conditions, not OR alternatives. A rule that requires more matching effects is a more specific rule and takes priority over a broader rule involving the same active effects.

The sections below cover the fields that refine playback after the target effects and sound files have been selected.

Playback modes

Use Multi-Sound Mode to choose how multiple sound entries are handled:

Option	Behavior
Parallel	Plays all configured sounds simultaneously.
Sequential	Plays one sound at a time in priority order.
Random	Plays one sound at a time, selected randomly from the rule.
Manual	Uses only the sounds selected through Manual Sounds on each matching effect row.

Manual mode can offer light, moderate, and heavy variants from one rule while allowing each effect instance to choose which sounds are available.

Region modes

Region Sound Options uses the following fields:

Field	What it changes
Region Radius	Sets the Region expansion from 0% to 500% of each disconnected Region component’s size.
Play within Region bounds	Keeps activation tied to the drawn Region footprint before radius or easing expansion.
Use easing	Fades volume across the configured Region padding instead of changing abruptly.
Constrained by walls	Allows walls and surface occlusion to block the sound.
Muffled by walls	Applies the selected Muffled Effect and Muffled Effect Intensity when walls or surfaces occlude the sound.

The combination of Play within Region bounds and Region Radius determines the playback mode:

• Play within Region bounds enabled with Region Radius at 0: audible within the matching Region.
• Play within Region bounds enabled with Region Radius above 0: full volume in the Region with optional padding beyond its boundary.
• Play within Region bounds disabled with Region Radius above 0: each disconnected Region component acts as a point source from its center.
• Play within Region bounds disabled with Region Radius at 0: the Region rule plays Scene-wide. It remains a Region rule and is separate from sounds configured directly on the Scene.

Constrained by walls and Muffled by walls are mutually exclusive.

Token Movement Options

Token Movement rules can configure:

• Movement Delay, with Min and Max values from 0 to 30,000 milliseconds.
• Token Elevation Threshold, including an unlimited value.
• Token Radius around the moving token.
• Use easing for the token radius.
• Constrained by walls or Muffled by walls for token-radius playback.

Use a Movement Delay range to avoid a rigid sound on every movement update.

Effect-level controls

A particle or filter displays Sound FX only when an active rule matches that effect. When the matching rule uses Manual mode and contains multiple sounds, the effect row also displays Manual Sounds.

PSFX Ambience defaults

When the psfx-ambience module is present, FXMaster+ can install default rules for Rain, Wind, Lightning, and Lightning Bolts. Use Reset PSFX Rules to Default from the Sound Effects Manager overflow menu to restore those built-in rules while preserving custom rules. The module is available through PeriSFX on Patreon.

The default rule set uses versioned identifiers, so restoring defaults does not overwrite unrelated custom rules.

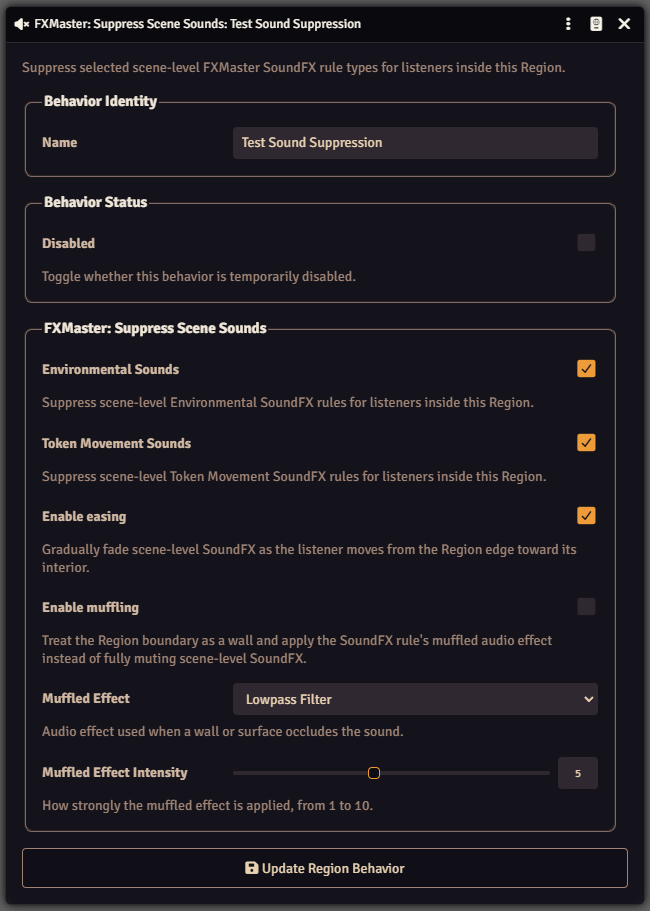

Suppression

Add FXMaster: Suppress Scene Sounds to a Region to suppress selected Scene-level SoundFX rule types for listeners inside that Region. Environmental Sounds and Token Movement Sounds are independent controls, and both are enabled by default.

Parameter	What it changes
Environmental Sounds	Suppresses Scene-level Environmental rules inside the Region when enabled.
Token Movement Sounds	Suppresses Scene-level Token Movement rules inside the Region when enabled.
Enable easing	Fades the selected Scene-level sound types as the listener moves through the Region boundary instead of changing them immediately.
Enable muffling	Applies a muffled treatment to the selected sound types instead of fully suppressing them.
Muffled Effect	Selects Lowpass Filter, Highpass Filter, or Reverb while muffling is enabled.
Muffled Effect Intensity	Sets the strength of the selected muffled effect from 1 to 10.

Disable either sound-type control when the Region should affect only Environmental or only Token Movement rules. The sound behavior is independent from particle and filter suppression. Add the corresponding suppression behaviors when the Scene’s visual effects should also be removed inside the Region.

Hooks

Integrations can observe the runtime without modifying it:

Hooks.on('fxmasterPlusSoundFxPlayingChanged', ({ active }) => {
  console.log('Any FXMaster+ SoundFX playing:', active);
});

Hooks.on('fxmasterPlusSoundFxActiveRulesChanged', ({ rules }) => {
  console.log('Active SoundFX rule payloads:', rules);
});
